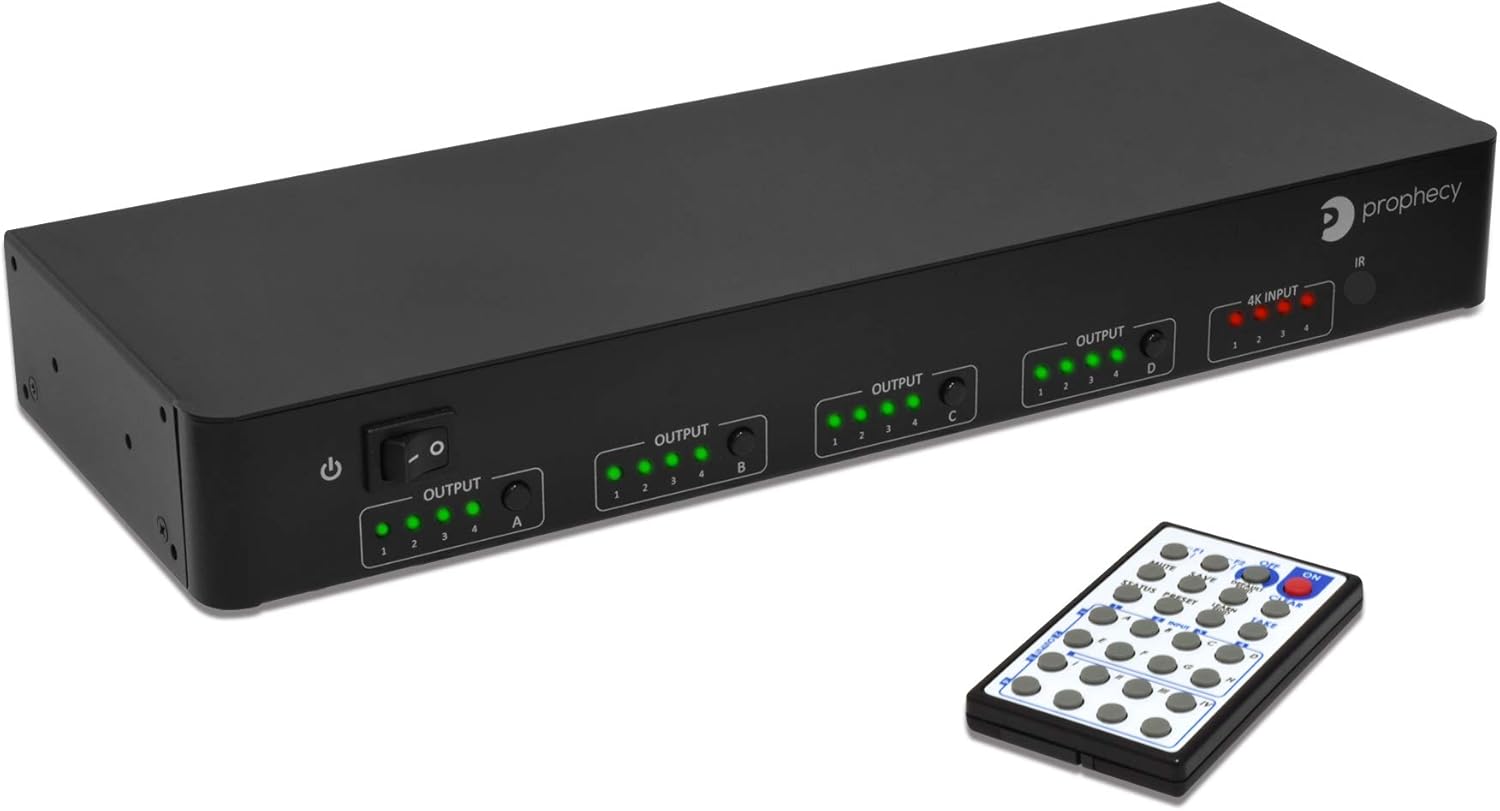

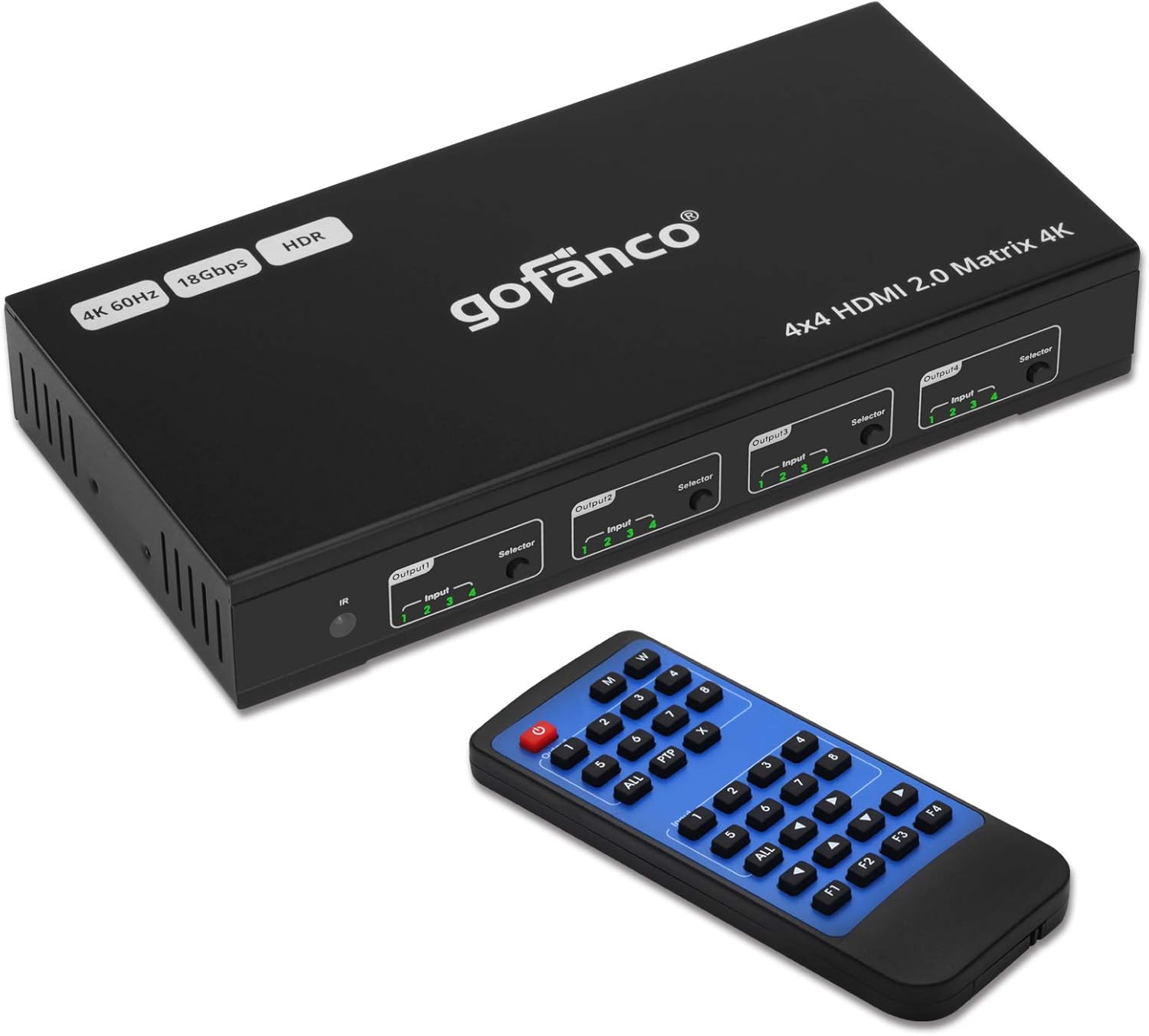

4x4 HDMI 2.0 Matrix Switcher with IR Remote, 4K 60Hz HDR, 18Gbps, 4 in 4 Out N75314
Sale price
$22.50
Regular price $103.94
Skip to product information
✔ 4x4 HDMI Matrix – Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats✔ HDMI 2.0 Standard – Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps. Supports audio extraction to S/PDIF Coaxial audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays.✔ EDID Management – EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.✔ Flexible Switching Options – 1) Push buttons, 2) IR remote, 3) RS-232 control, 4) IP control, 5) Web GUI control. Select sources for each display in a way that is most convenient to you.✔ SIMPLE INSTALLATION - No driver required; Surface-mountable metal housing provides durability and minimizes EMI/RFI noise interference. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns.
4x4 HDMI 2.0 Matrix Switcher with IR Remote, 4K 60Hz HDR, 18Gbps, 4 in 4 Out N75314
Sale price
$22.50
Regular price $103.94
Shipping calculated at checkout.
| Matrix44 | PRO-Matrix44-SC | Matrix44-HDBT | Matrix44-HD20 | Matrix42-HD20 | Matrix88 | |
|---|---|---|---|---|---|---|
| Input x Output | 4x4 | 4x4 | 4x4 | 4x4 | 4x2 | 8x8 |
| Max Resolution | 4K @30Hz | 4K @60Hz 4:4:4 | 4K @60Hz 4:2:0 | 4K @60Hz 4:4:4 | 4K @60Hz 4:4:4 | 1080p @60Hz |
| HDMI/HDCP | HDMI 1.4 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.4 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.3 / HDCP 1.4 |
| Extender | No | No | 4K @60Hz (4:2:0) & 4K @30Hz up to 130ft (40m), 1080p/3D up to 230ft (70m) | No | No | No |
| Mixed Resolution Output | None | 4K & 1080p | None | None | 4K & 1080p | None |
| Switch Methods | Front Panel Buttons / IR Remote / RS-232 Control | Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4* | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 Control / Web GUI |
| Bandwidth | 10.2 Gbps | 18 Gbps | 10.2 Gbps | 18 Gbps | 18 Gbps | 10.2 Gbps |
| HDR | No | Yes | No | Yes | Yes | No |
| RS-232 Control | Yes | Yes | Yes | Yes | Yes | Yes |
| EDID | Yes | Yes | Yes | Yes | Yes | Yes |
