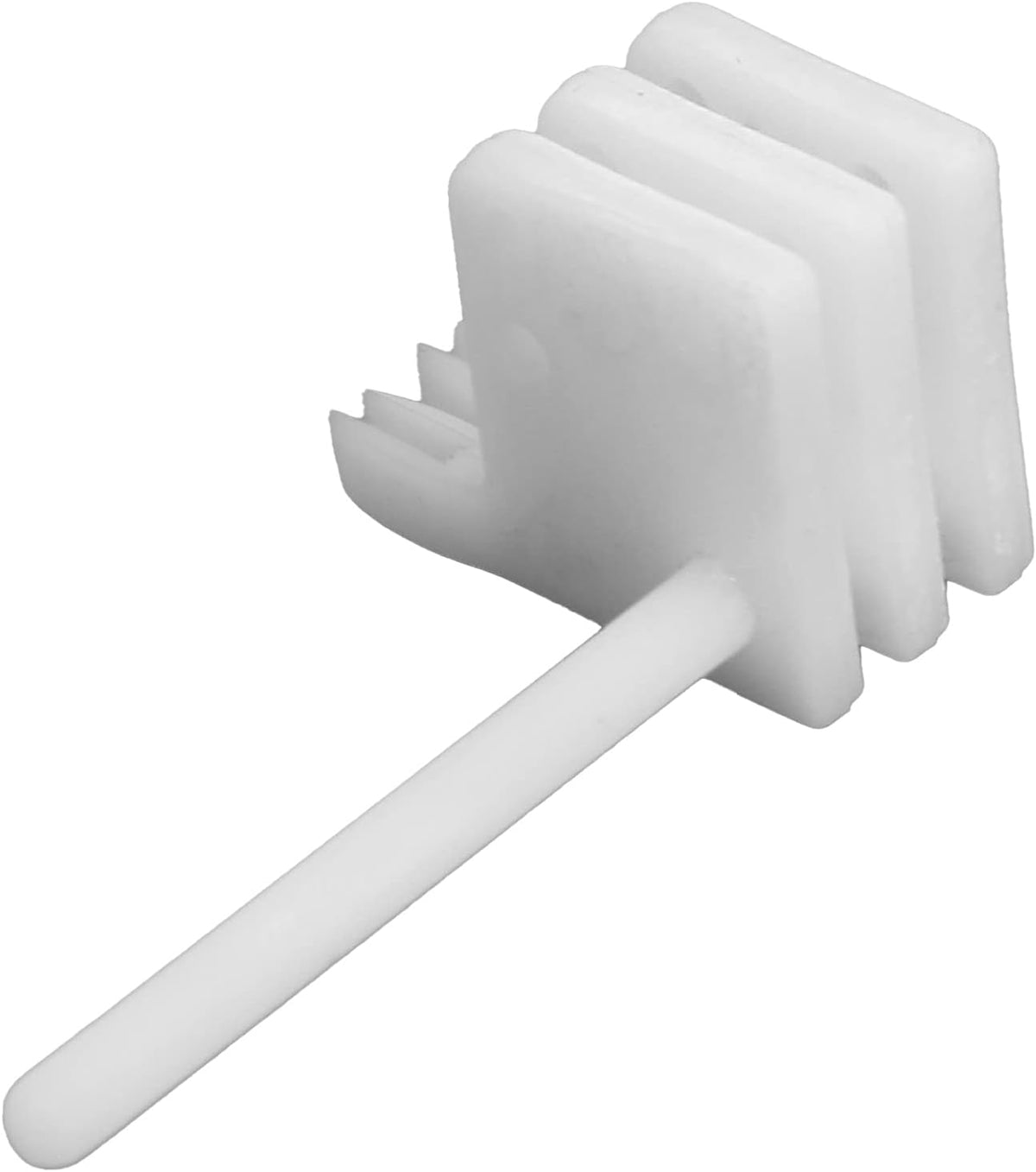

Hard Drive Head Replacement Comb HSA Repair Tools Kit for 2.5 3.5 Inch Hard Drive R2436
Hard Drive Head Replacement Comb HSA Repair Tools Kit for 2.5 3.5 Inch Hard Drive R2436
【Suitable Object】This hard drive head replacement comb is suitable for builtin 2.5/3.5in hard drive, which is quite practical.
【Replacement Conditions】Any head replacement or component replacement by disassembling the hard drive must be performed in a qualified clean environment.

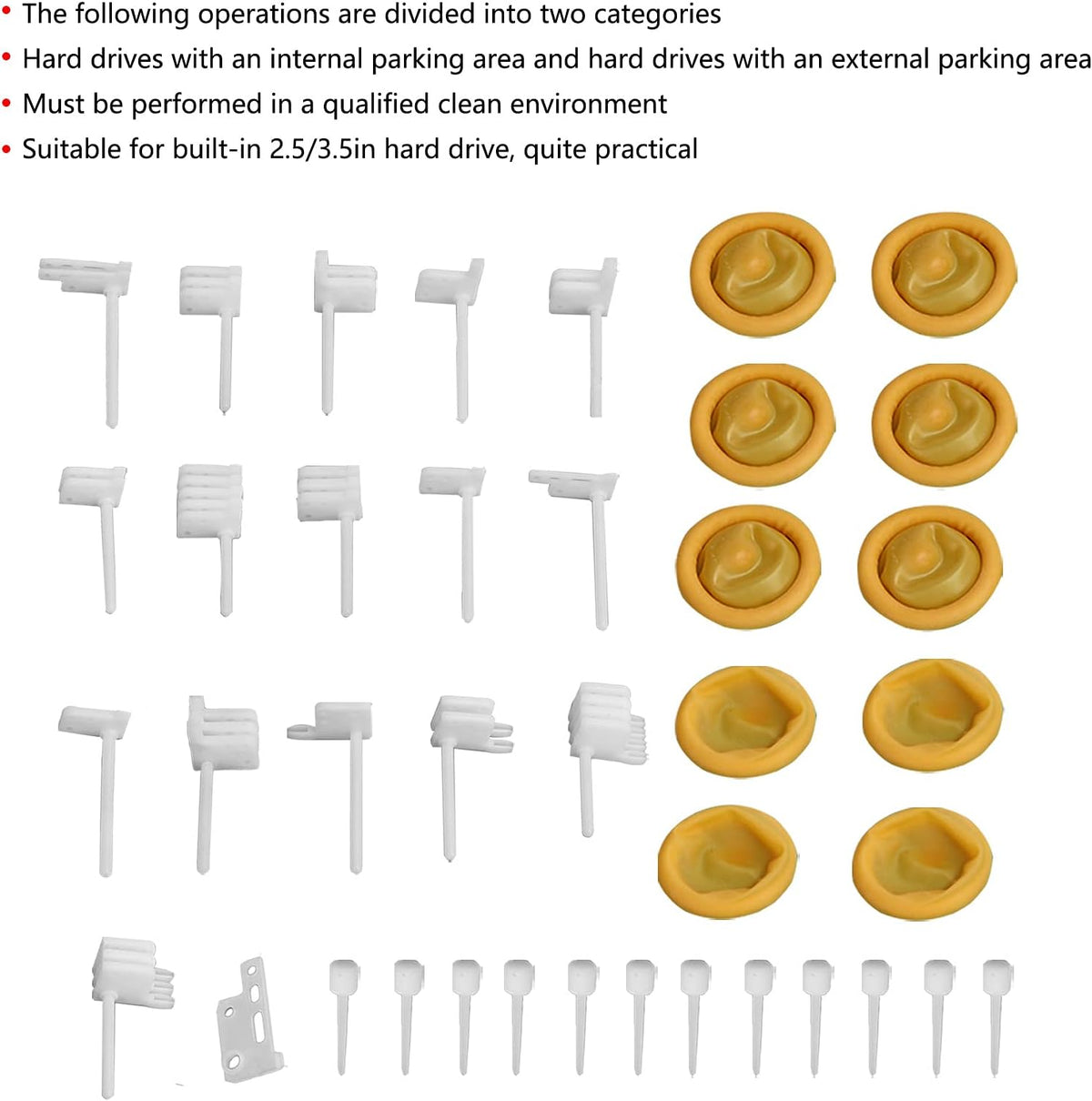

【Two Categories Operations】The following operations are divided into two categories: hard drives with an internal parking area and hard drives with an external parking area.
【Replacement Definition】Head replacement refers to the replacement of the entire head stack assembly (HSA), rather than partial replacement of the HSA.
【Stable Durable】High quality material can make sure the durability and stability of the product.
Specification:
Item Type: Hard Drive Head Replacement Comb
How to Use:
Unloading Head Of Hard Drive With Internal Parking Area:
Disassemble the hard drive in a clean room environment.
Remove the HSA power socket.
Remove the short partition frame. (Very few drives have this drive)
Remove the top magnet and HSA brake of the voice coil motor or VCM.
Press the coil of the VCM with the fingers of the left hand, and evenly rotate the motor counterclockwise with the fingers of the right hand until the edge of the disc is 1 mm. This process should be completed at one time to avoid the possibility of the magnetic head being stuck. Platter.

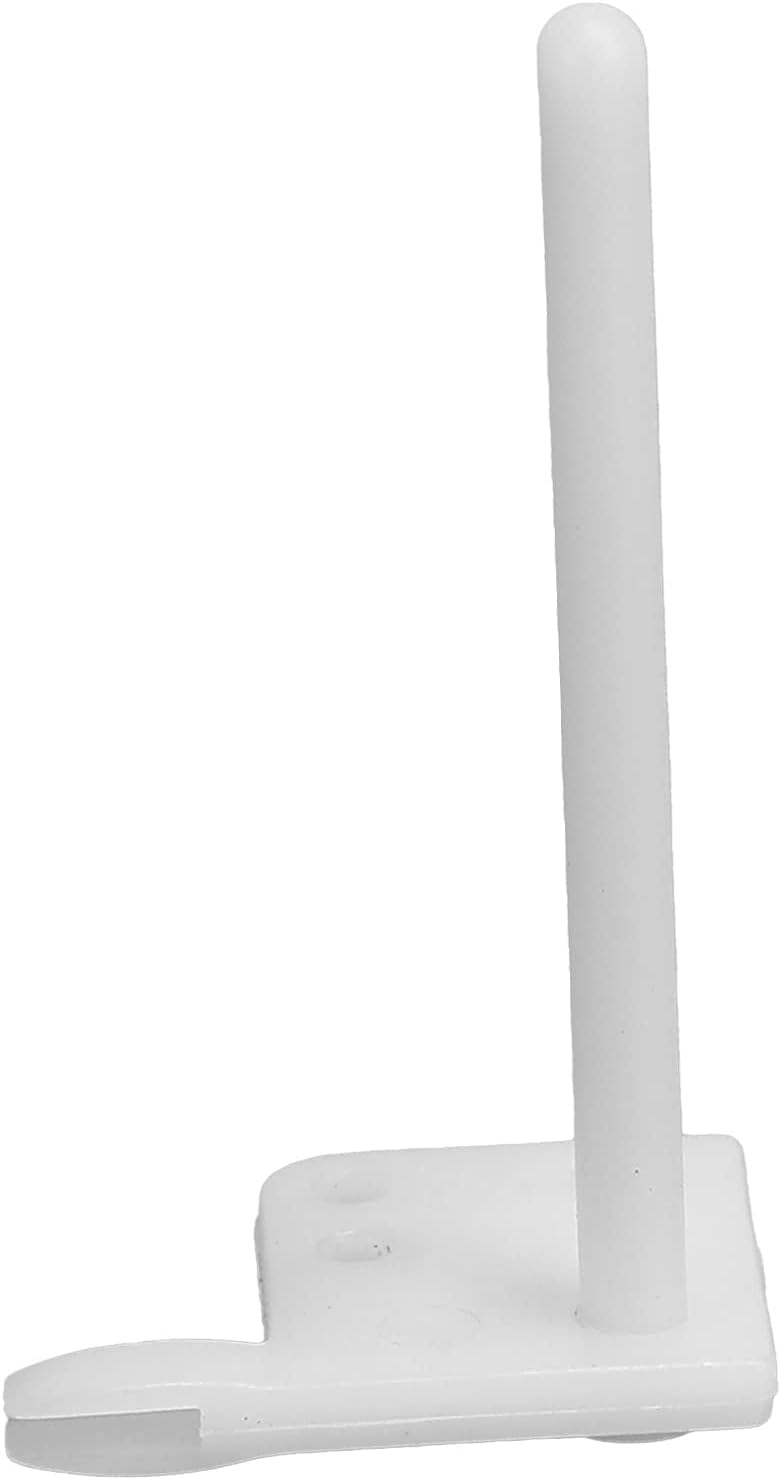

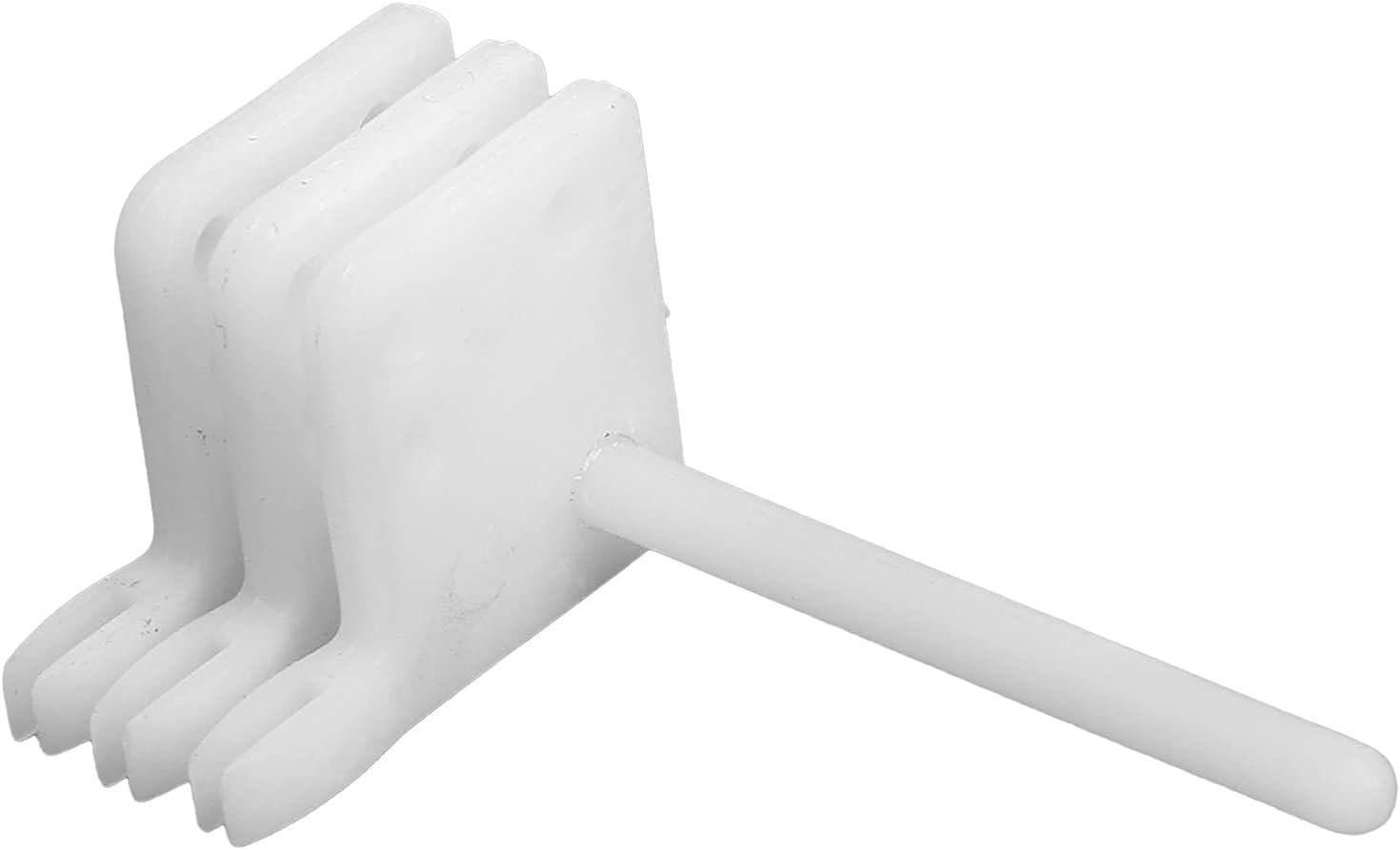

Observe carefully, and gently move the hollow part (head comb) of the head replacement tool kit into the head arm. The most important thing is to keep a proper distance between the head arm and the actual reading. Do not move the head comb directly to the slider area, which can easily damage the head. Then, continue to rotate the motor with the left hand to move the magnetic head out of the disc, so that the magnetic head arm can completely enter the magnetic head comb, while the magnetic head remains intact and moved out of the comb.
Adjust the position of the head replacement tool kit (head comb) so that we can fix it with the head arm by inserting the locking pin into the mounting point at the end of the head arm.
Please Note: Improper or rude operation may distort or even damage the HSA.
Loosen and remove the screws, and then remove the HSA.
Package List:

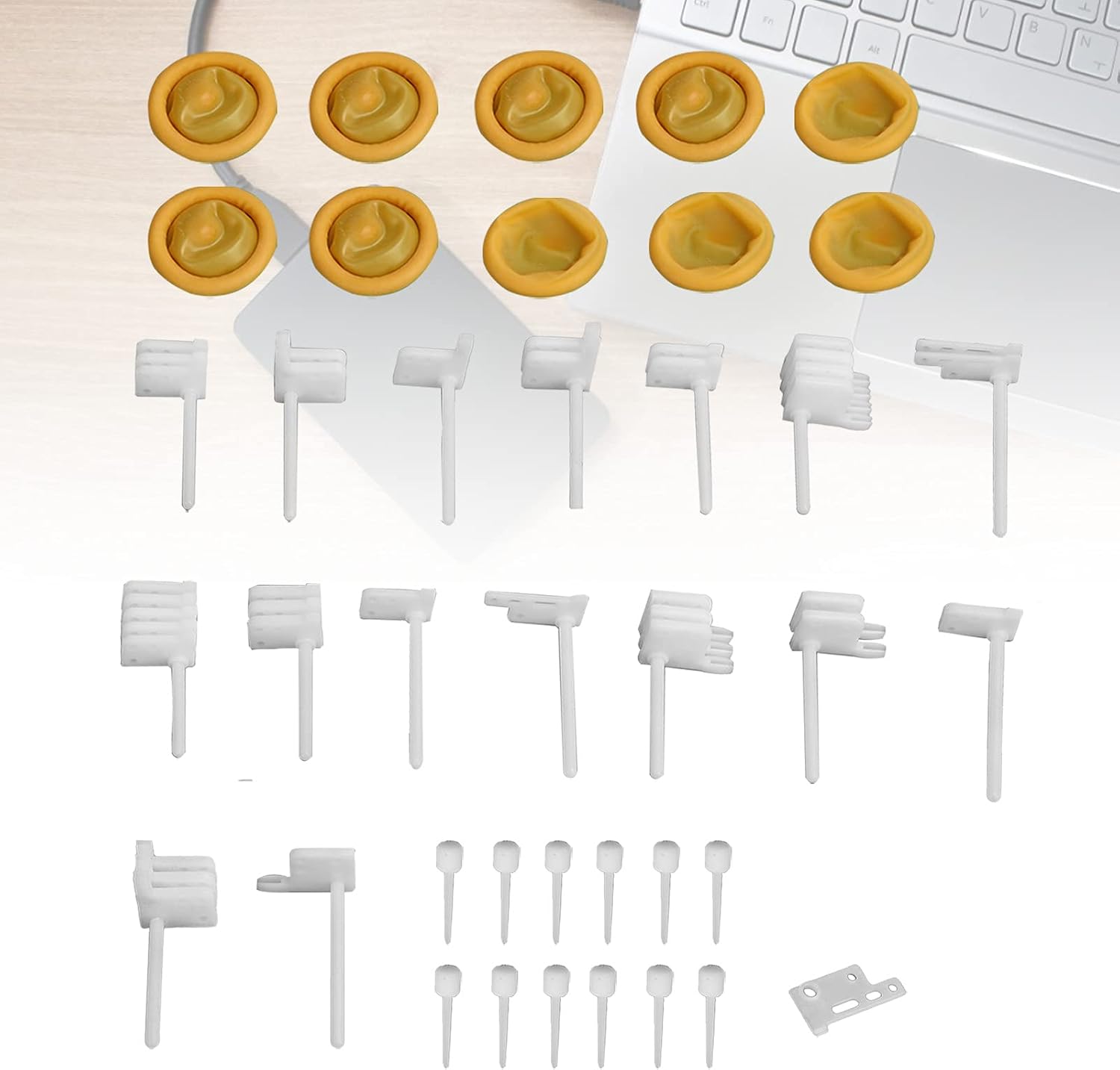

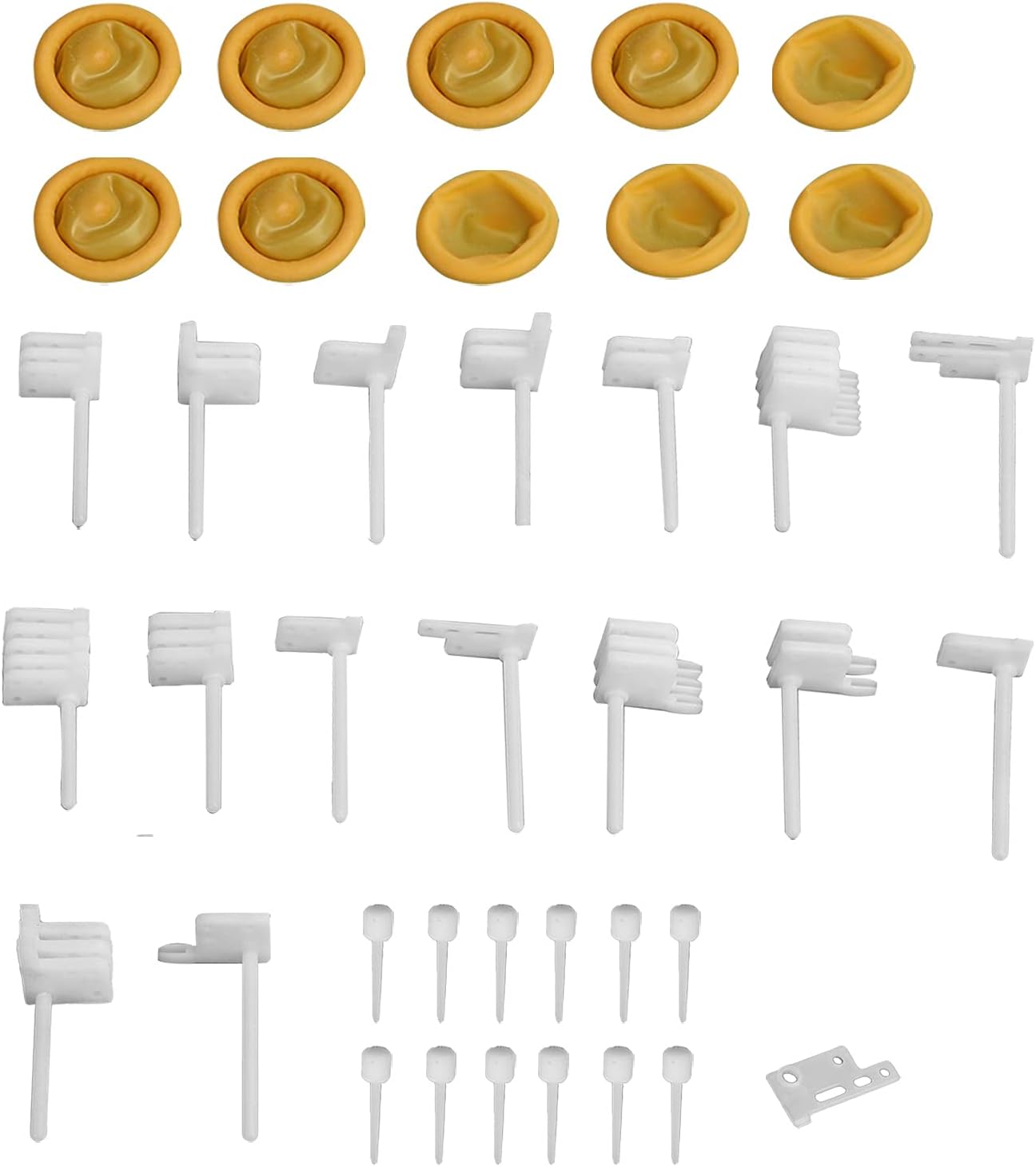

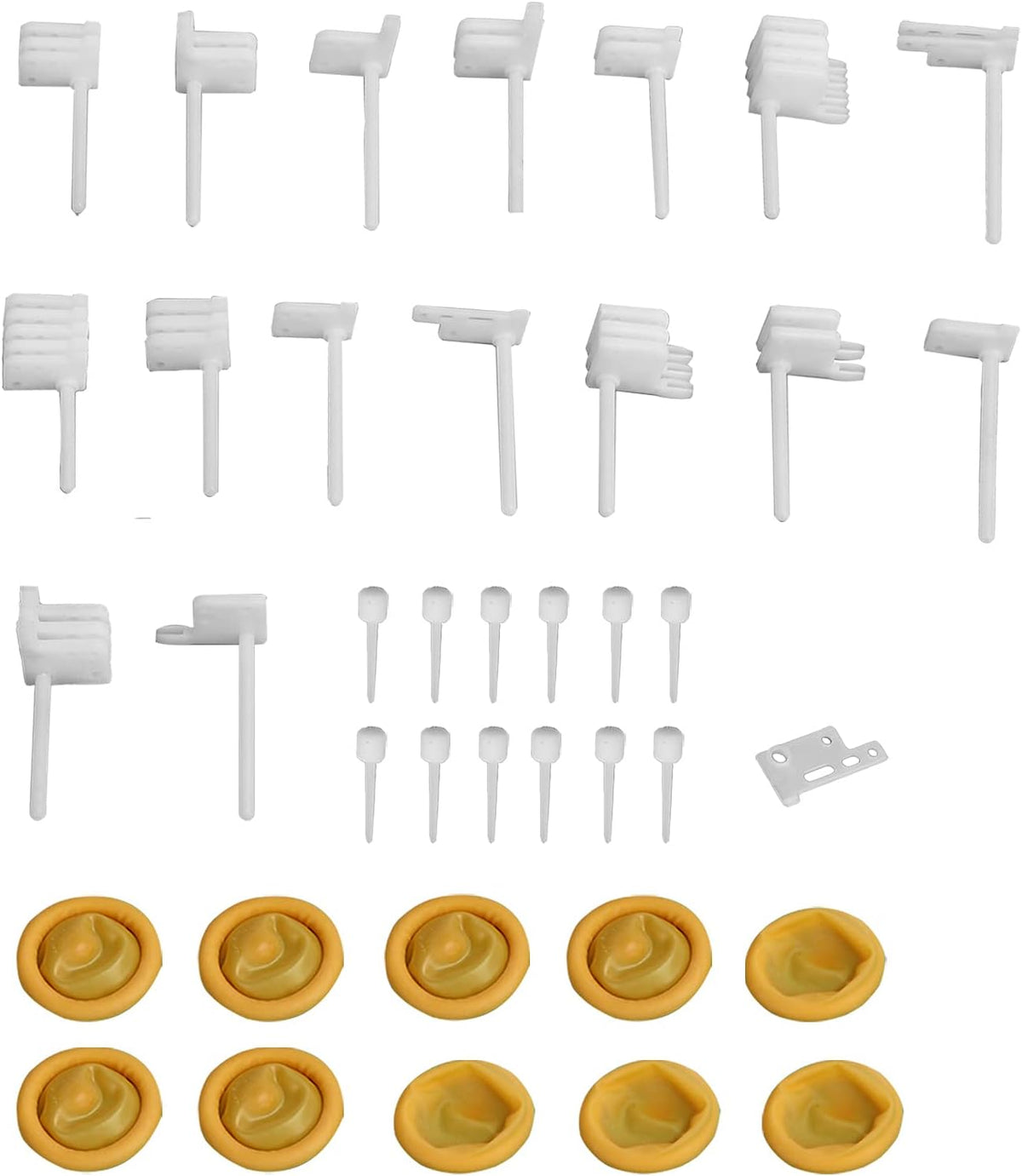

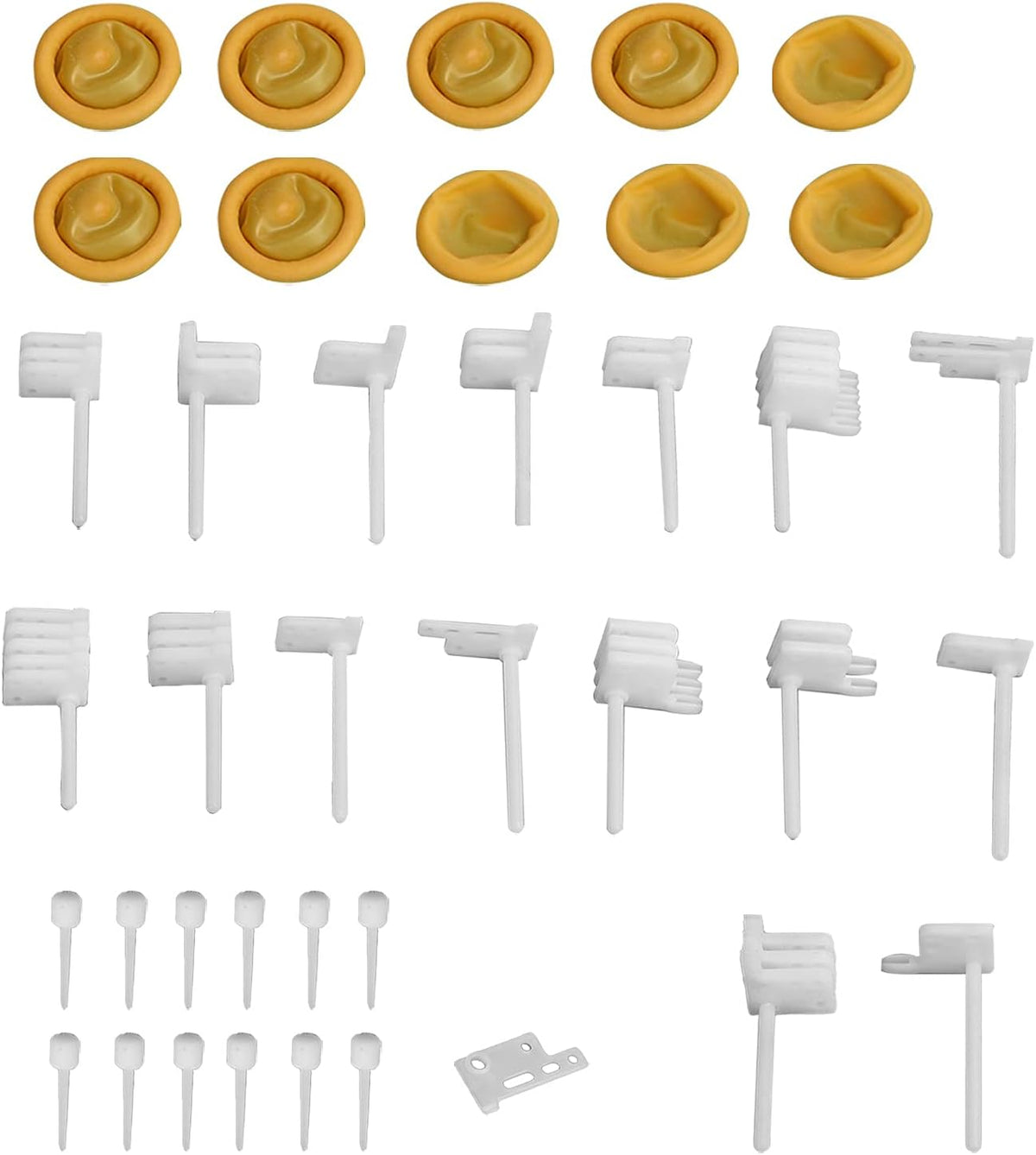

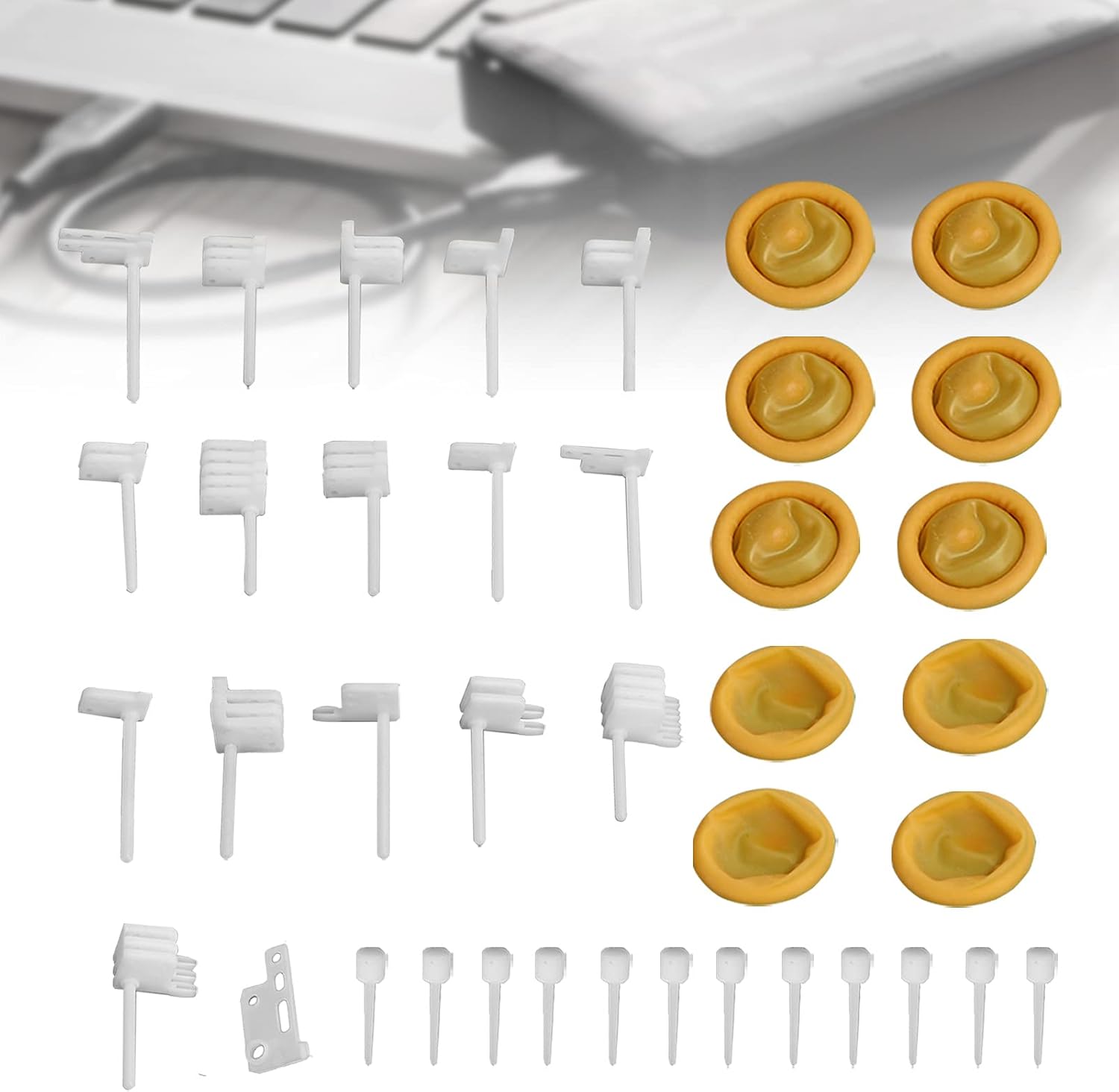

1 x 101 1 x 102 1 x 103 1 x 104 1 x 121
1 x 122 1 x 123 1 x 132 1 x 201 1 x 202
1 x 203 1 x 215 1 x 301 1 x 302 1 x 401
1 x 403 12 x Pin 1 x Gasket 10 x Ring Sleeve
