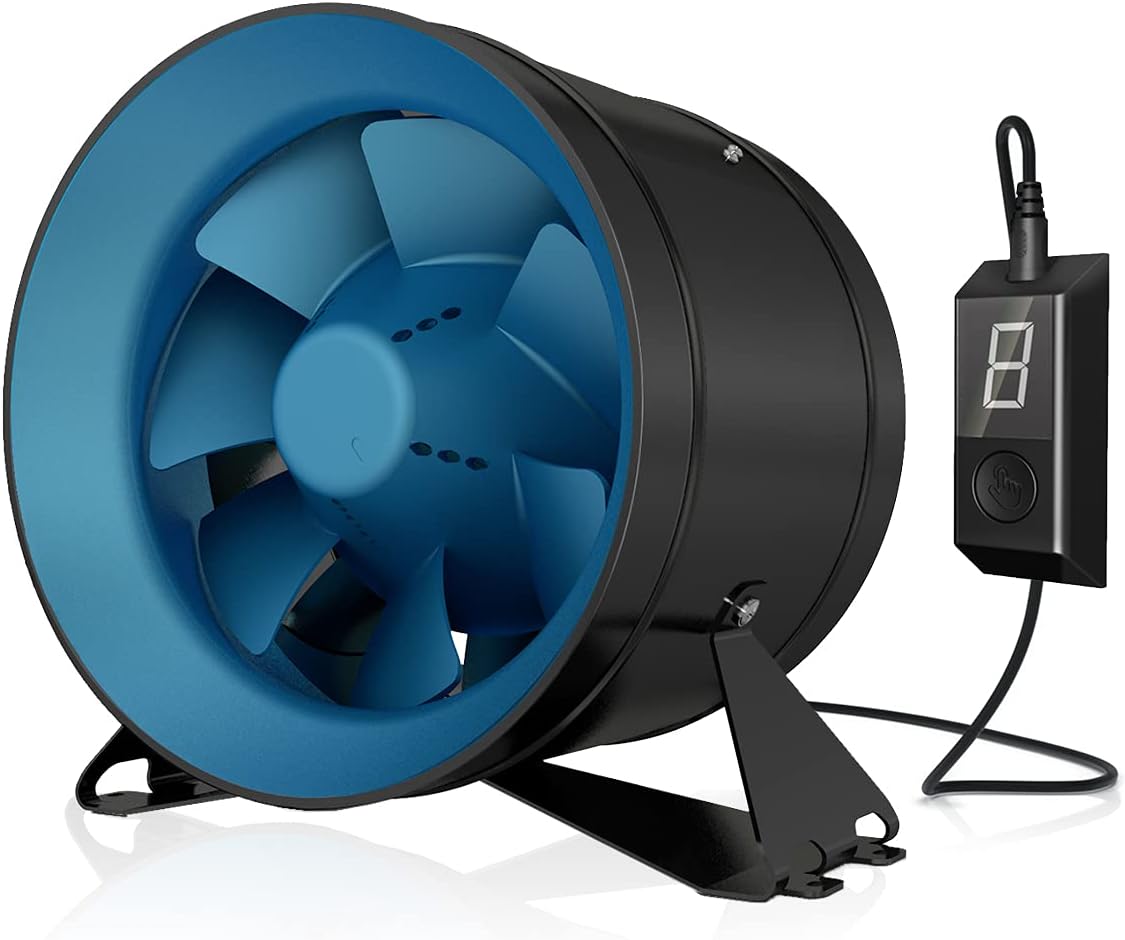

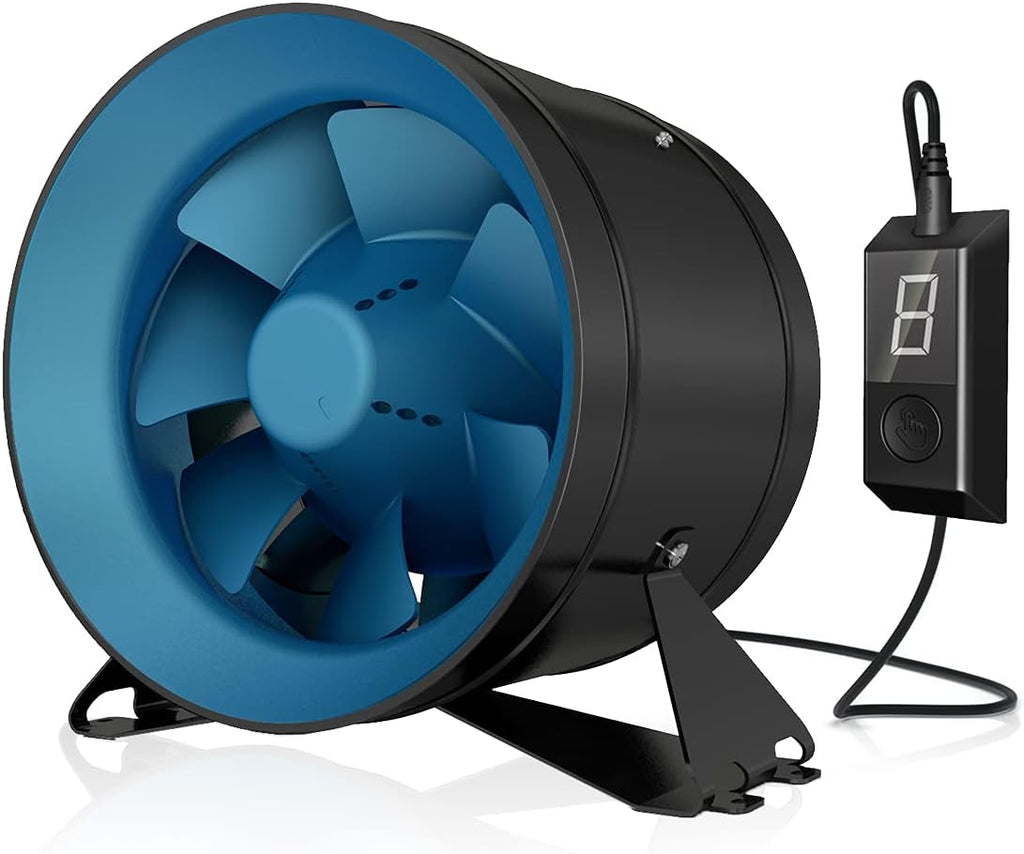

10 Inch Inline Duct Fan with Variable Speed Controller G981
Sale price
$39.99
Regular price $133.73
Skip to product information

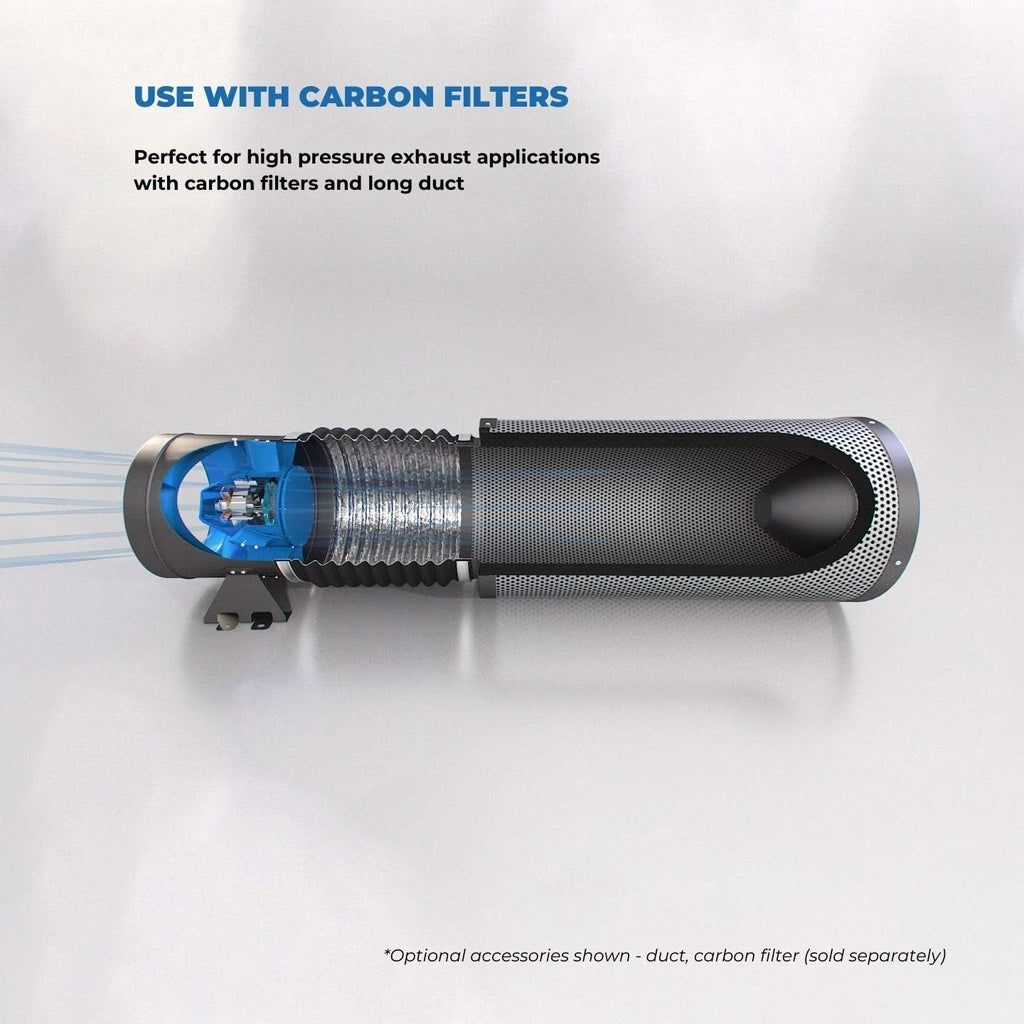

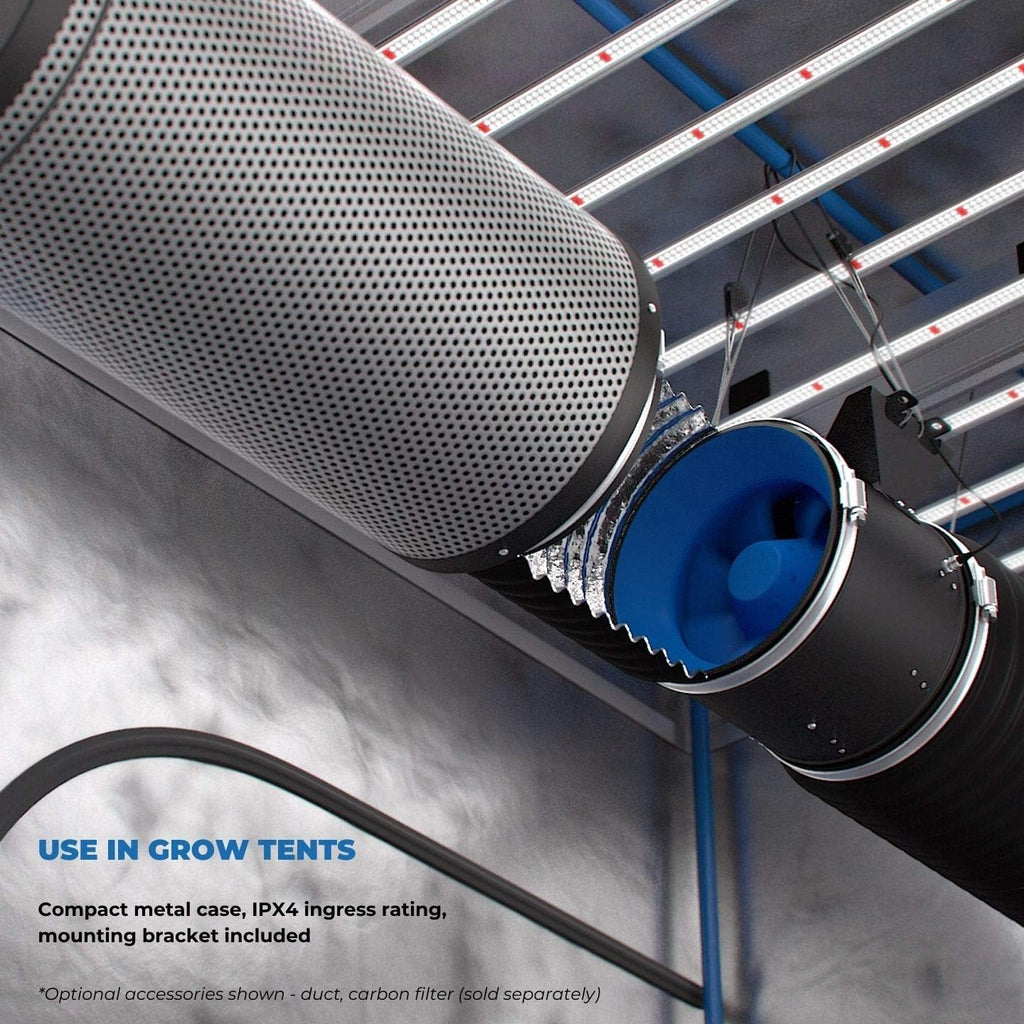

TerraBloom EC duct fans are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors

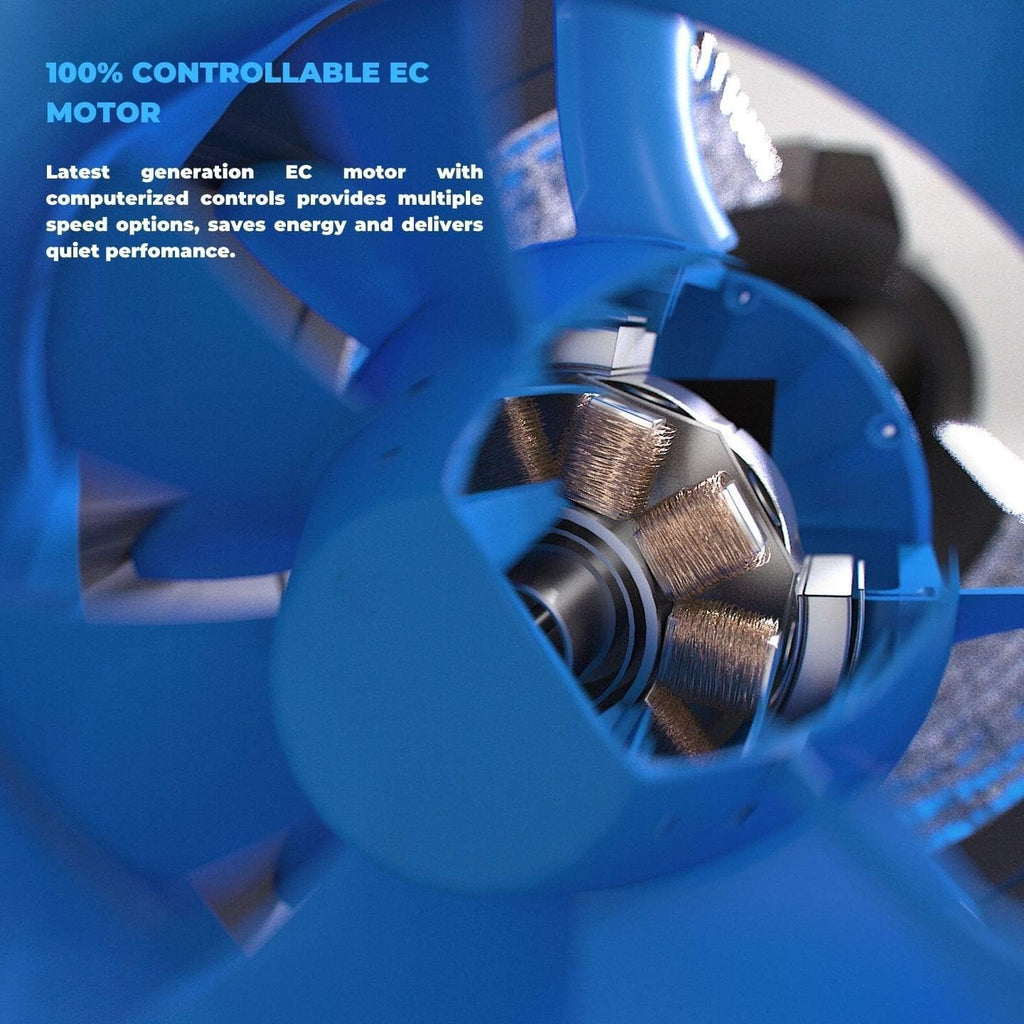

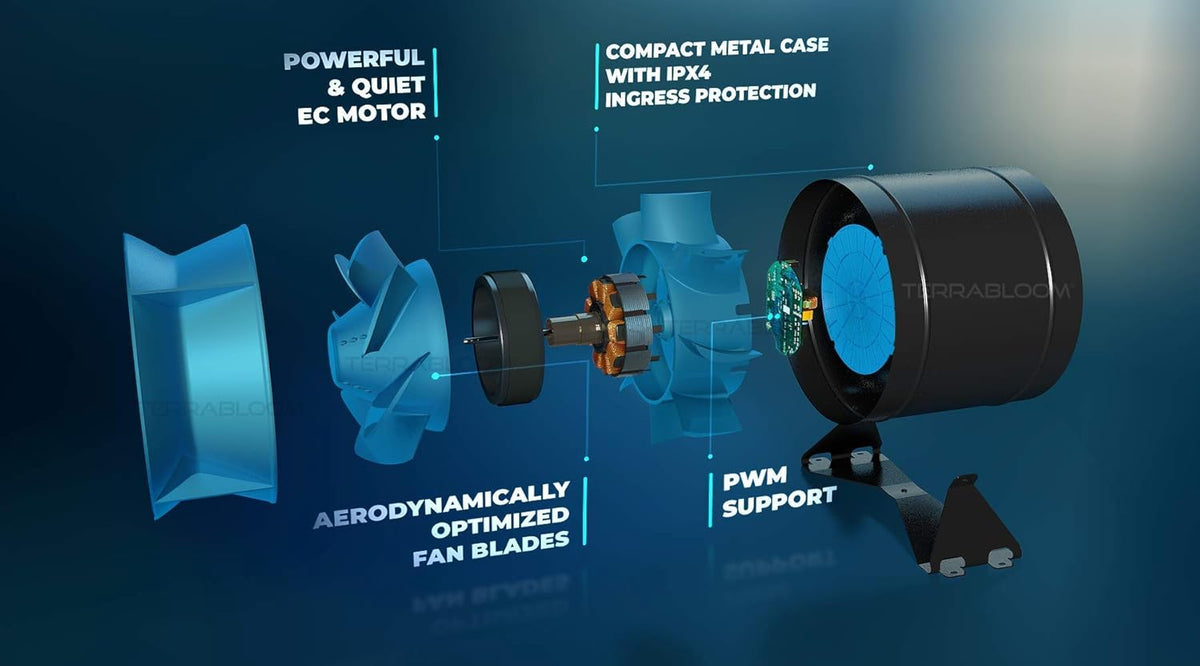

Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 946 CFM airflow rate using just 126 Watts at max speed. It translates into only $380 annual cost of 24/7 operation at max speed using $0.29 average cost per KWH. Our fans don’t “purge” or waste electricity at lower speeds. ECMF-250 is HVI Certified and meets the ENERGY STAR Most Efficient 2021 Criteria.
Our EC fan gives you a unique flexibility of controls – choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control (Model: ECMF-WR) or intelligent thermostat speed controller with temperature programming (Model: SC-ECMF). This fan also supports PWM and 0-10V controllers via 3.5mm audio port
Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IPX4 ingress protection rating

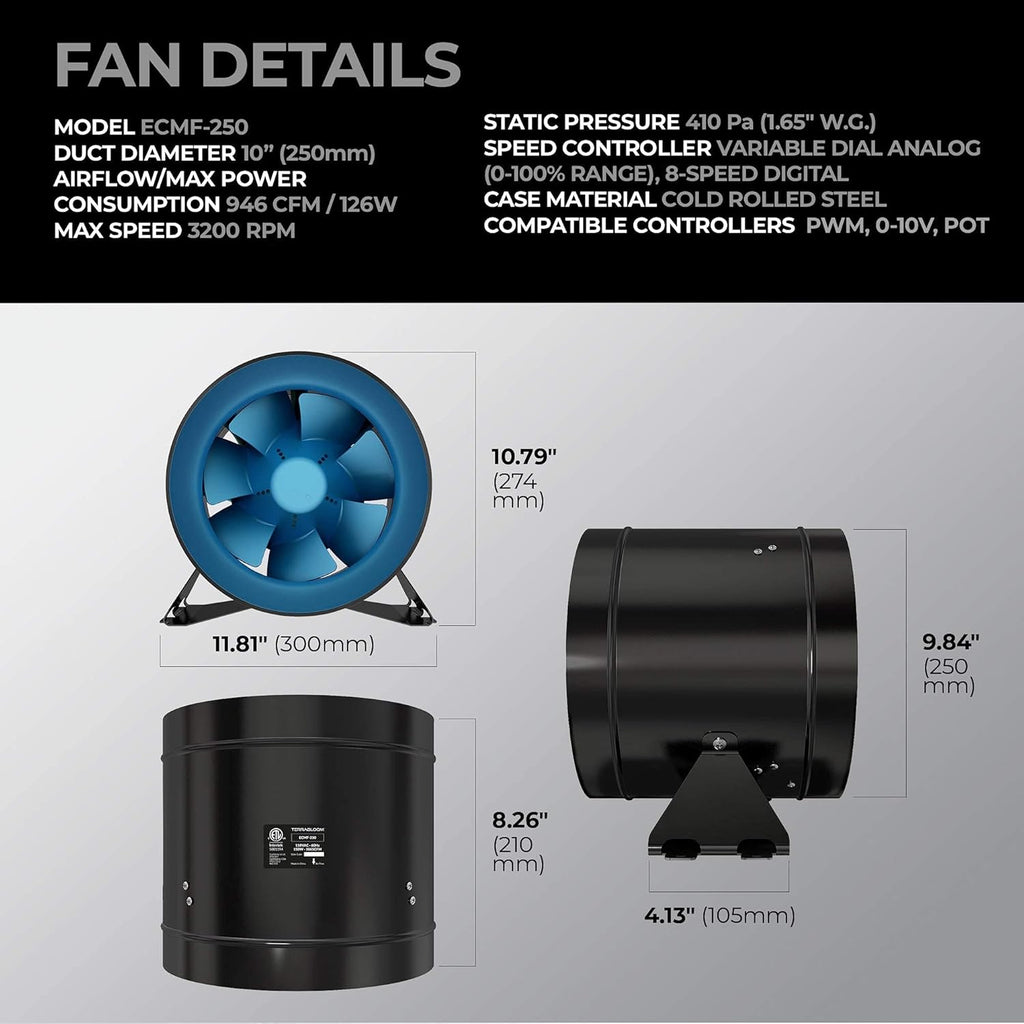

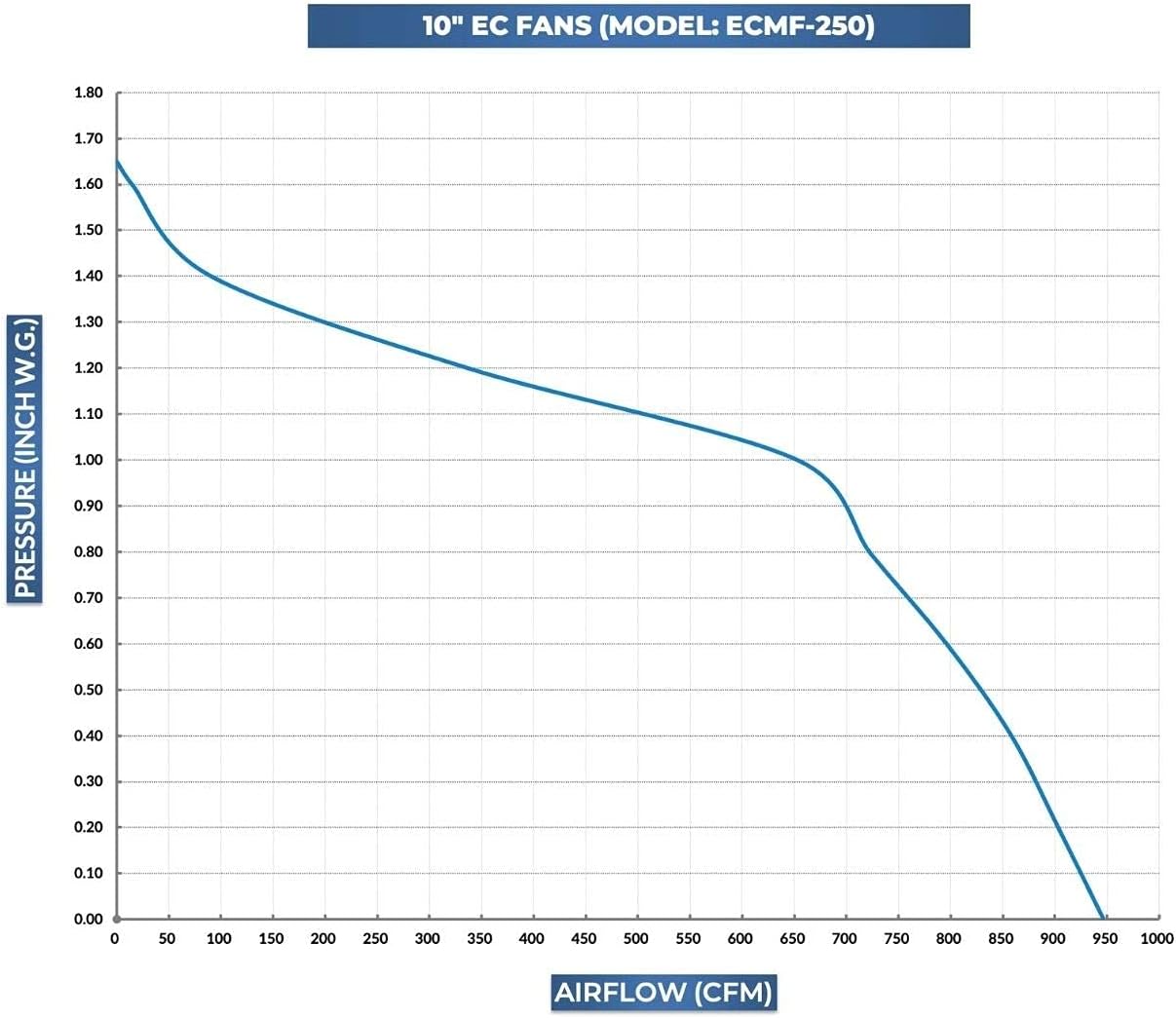

Duct Diameter: 10” (250mm) * Airflow: 946 CFM * Power: 126W * Noise: 45-65 dBA * Max Pressure: 410 Pa * Bearings: Dual Ball * Size: 8.3 x 11.8 x 10.8 in. * ETL Listed * 2 Year Warranty
10 Inch Inline Duct Fan with Variable Speed Controller G981
Sale price
$39.99
Regular price $133.73
Shipping calculated at checkout.
TerraBloom EC duct fans are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors
Built with cutting edge brushless EC Motor and dual jet type blades, this blower delivers 946 CFM airflow rate using just 126 Watts at max speed. It translates into only $380 annual cost of 24/7 operation at max speed using $0.29 average cost per KWH. Our fans don’t “purge” or waste electricity at lower speeds. ECMF-250 is HVI Certified and meets the ENERGY STAR Most Efficient 2021 Criteria.
Our EC fan gives you a unique flexibility of controls – choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds. Or choose to upgrade to a wireless remote control (Model: ECMF-WR) or intelligent thermostat speed controller with temperature programming (Model: SC-ECMF). This fan also supports PWM and 0-10V controllers via 3.5mm audio port
Coated steel housing resists rust, protects motor and blades from accidental damage and harsh elements to reduce maintenance in demanding applications. This fan has IPX4 ingress protection rating
Duct Diameter: 10” (250mm) * Airflow: 946 CFM * Power: 126W * Noise: 45-65 dBA * Max Pressure: 410 Pa * Bearings: Dual Ball * Size: 8.3 x 11.8 x 10.8 in. * ETL Listed * 2 Year Warranty
| 10' EC Inline Fan, ECMF-250 | 10' Remote Controlled EC Inline Fan, ECMF-250-R | 8' Remote Controlled EC Inline Fan, ECMF-200-R | 8' EC Inline Fan, ECMF-200 | Thermostat Speed Controller for ECMF Fans | Wireless Remote Add-On For ECMF Fans | |
|---|---|---|---|---|---|---|
| Type Of Motor | EC | EC | EC | EC | Accessory for ECMF Series | Accessory for ECMF Series |
| CFM | 946 | 946 | 569 | 569 | Supports ECMF series Fans | Supports ECMF series Fans |
| Power Consumption at Max Speed | 126 | 126 | 74 | 74 | Powered by Fan | Powered By Battery |
| ETL/UL Listed | ✓ | ✓ | ✓ | ✓ | N/A | N/A |
| Casing Material | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel | Plastic | Plastic |
| Included Speed Controller | 0%-100% Variable Speed Controller | 15%-100% Wireless 6-Speed Controller | 15%-100% Wireless 6-Speed Controller | 0%-100% Variable Speed Controller | N/A | N/A |
| Recommended Use | Commercial Space, Attics, Crawl Spaces, Warehouses, Indoor Gardens, Greenhouses, Farms | Commercial Spaces, Attics, Crawl Spaces, Warehouses, Indoor Gardens, Greenhouses, Farms | Grow Tents, Indoor Gardens, Bathroom Exhausts, Electronics Closets (Laser Cutters, Mining, Server, AV Equipment) | Attics, Crawl Grow Tents, Indoor Gardens, Bathroom Exhausts, Electronics Closets (Laser Cutters, Mining, Server, AV Equipment)Spaces, Warehouses, Indoor Gardens, Greenhouses, Farms | Supports ECMF series Fans | Supports ECMF series Fans |
| Environment Requirements | Indoor Use Only, with temperatures between 15°F(-10°C) to 140°F (60°C), Humidity Under 90% | Indoor Use Only, with temperatures between 15°F(-10°C) to 140°F (60°C), Humidity Under 90% | Indoor Use Only, with temperatures between 15°F(-10°C) to 140°F (60°C), Humidity Under 90% | Indoor Use Only, with temperatures between 15°F(-10°C) to 140°F (60°C), Humidity Under 90% | Indoor Use Only, with temperatures between 15°F(-10°C) to 140°F (60°C), Humidity Under 90% | Indoor Use Only, with temperatures between 15°F(-10°C) to 140°F (60°C), Humidity Under 90% |
| Dimensions | 12.13' (L) x 7.87' (W) x 8.94' (H). 10 Lbs | 12.13' (L) x 7.87' (W) x 8.94' (H). 10 Lbs | 8.75' (L) x 6.3' (W) x 8.86' (H). 7 Lbs | 8.75' (L) x 6.3' (W) x 8.86' (H). 7 Lbs | 4.5' (L) x 4.5' (W) x 2' (H) | 5.75' (L) x 4.75' (W) x 1.75' (H) |
| Supported Speed Signals | PWM, 0-10VDC, Potentiometer | Remote Only | Remote Only | PWM, 0-10VDC, Potentiometer | Built In 6 Speed Options | Built In 6 Speed Options |
